An intraabdominal stent system for gasless laparoscopic surgery in animal model: potential benefits and limitations

Introduction

Laparoscopic surgery had been developed for decades. Conventionally, the most commonly used method to create a suitable operative filed is artificial pneumoperitoneum using carbon dioxide (CO₂). Inflation of CO₂ can expand the peritoneal cavity, with which a proper operative filed can be created. Because CO₂ is a chemically inert gas and can be easily absorbed by the human body, using CO₂ to achieve artificial pneumoperitoneum had been a routine in current practice of laparoscopic surgery.

Inflation of CO₂ is usually controlled by an external machine which can regulate the rate of inflation and the pressure in the abdominal cavity. When we use higher pressure of inflation, there would be more CO₂ in the peritoneal cavity. Higher pressure can result in larger volume of intra-peritoneal space, which is easier for surgeons to perform the surgery. However, elevated intra-peritoneal pressure can lead to some adverse effects. The pressure-related complications included deep venous thrombosis, impaired cardiac contractility, impaired gas exchange and pulmonary embolism, etc. (1). In some studies of animal model, gasless laparoscopic surgery might reduce the risk of metastasis (2) and might reduce the stress-related biochemical status of the intraabdominal organs (3). Lung and chest compliance were influenced more in CO₂ pneumoperitoneum than those in abdominal wall elevation method (4).

Another problem of incidental mass air leaks from the trocar sites can lead to immediate disappearance of operative fields. Surgeons have to re-inflate CO₂ into the intra-peritoneal cavity to continue any procedure. Because maintaining adequate air volume within intra-abdominal cavity is quite essential for surgery, the size of trocar incision has to be tightly fit the size of trocar. The size of trocar also limits selection of instrument type and size.

In order to minimize the complications resulting from high intra-abdominal pressure and solve the problem of instrumentation, gasless laparoscopic surgery had been proposed in the past. The basic concept is using a device that can be fixed adequately on the operative table and a hook-type device that can lift the abdominal wall upwards. The lifting techniques and device can create a gasless operative filed but the volume of the operative field is very limited. Because of limited operative space, the method is not popular. In the study, we designed a highly folded device that can expand greatly after placement into peritoneal cavity and could act as a stent-like structure to obtaining an improved operative space in gasless laparoscopic surgery.

Methods

Device concept and in vitro simulation

The basic structure is composed of multiple segments of stainless steel connected with joints. In order to minimize the size of the device, it was designed to be rod-like shape with highly folded structure (Figure 1A). The device is 8 cm in length with a diameter of 2 cm (Figure 1B,1C). The tip that would be anchored onto the abdominal wall is round with some friction force (Figure 1D). The reason that we designed the device to be a rod-like structure is assumed that it can be placed into the body cavity through the lifted abdominal incision, such as an umbilical incision. After placement into peritoneal cavity, a controller was used to pull, with which the structure can be expanded in one step. The expanded structure would resemble the appearance of a spider (Figure 2A,2B). There were four major joints in the device with repeated folding. The speed of the device expansion can be controlled manually by the operator. The overall appearance and working mechanism resembles the principles of umbrella in reverse direction.

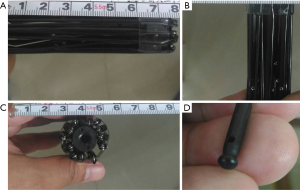

Figure 1 The structure of the device in its folded state. The length, width and diameter are shown in (A), (B) and (C), respectively. The tip that we use to anchor the abdominal wall is shown in (D), which is blunt to avoid penetrating injury of the abdominal wall.

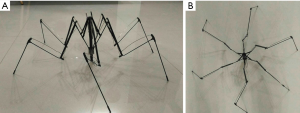

Figure 2 The folded device can be expanded in one step. (A) The semi-expanded appearance resembled the appearance of a spider; (B) in the view of upside down, it has six supporting arm.

When the device expands, the distal tip will begin to touch the inner side of the abdominal wall (Figure 3A). With gradually increasing resistance during expansion, the most distal segment will be bent to form a doom-like appearance and the tip will be anchored in a certain location (Figure 3B). The tip of the device was designed to be blunt with rough surface to support the device in certain regions of the inner side of the abdominal wall.

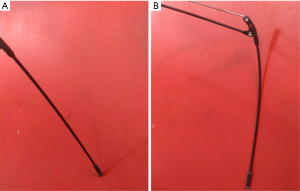

Figure 3 The most peripheral segment of the device is plastic to provide flexibility. (A) When distal tip was fixed in a certain site, progressive expansion of the device will have the segment to be bent to form a tent-like supporting framework; (B) the plastic part can provide sufficient friction force to avoid migration of the device.

Animal study using intra-abdominal stenting device

In the animal study, we tested the device in two 35-kg experimental pigs. Prior to beginning of the study, the pigs were prepared with an injection of intramuscular muscle relaxant. After induction of the anesthesia and intubation of an oral endotracheal tube, the pigs were adequately fixed on the operative tables. The whole course of anesthesia was maintained by inhalational anesthesia.

The basic instructions of the intra-abdominal stent were explained to the anticipated surgeons in detail. We confirmed that the surgeons could understand the instructions and could performed expansion of the stent in vitro.

The pigs were prepared in supine position. In order to test and compare the feasibility and efficacy of the stenting device, we let the surgeons to perform conventional laparoscopic surgery first by way of CO₂ pneumoperitoneum and to proceed to the procedure using intra-abdominal stent.

After creation of CO₂ pneumoperitoneum, the surgeons were allowed to perform simple procedures, such as splenectomy and cholecystectomy, which are easier procedures in tested pigs. After conventional laparoscopic surgery, we let the surgeons to try to use the umbilical incision to place the stent and then expand the stent device inside the peritoneal cavity of the pigs. After expansion of the intraabdominal stent, surgeons would perform simple procedures to check for the peritoneal cavity and observed the condition of the operative field as well as the abdominal wall that was anchored by the stent device. After the tests, we would allow the surgeons to extract the stent device outside to finish the animal study.

Results

The anticipated surgeons could understand the operation details of the intraabdominal stent within 5 minutes and could operate immediately after reading the instruction manual.

After adequate induction of general anesthesia, the planned procedures were placement of the intraabdominal stent and simulate simple laparoscopic procedures followed by withdraw of the intraabdominal stent to end the test.

In the first step, a peri-umbilical incision was made (Figure 4A). The size of the incision was around 3 cm in diameter. The intraabdominal incision was used for direct visual inspection to ensure that there was no adhesion or diseased state. After confirming the peritoneal space to be safe for instrumentation, the abdominal wall was elevated by any available tool, such as a pair of hook (Figure 4B). The abdominal wall was elevated to the height that the device can be placed through the incision. Then the condition of the device and its surrounding environment was inspected by a rigid endoscope from another incision (Figure 4C). The device was expanded by the controller. Hence, the segments of the device could support the abdominal wall to form a tent-like working space (Figure 4D).

Figure 4 The operative steps of the device before operation. Initially, we had to make an umbilical incision as we did in conventional laparoscopy. (A) Following umbilical incision, we had to pull the abdominal wall upwards to allow placement of the device; (B) after placement of the device into peritoneal cavity; (C) the device was expanded to support the abdominal wall; (D) the inner side of the abdomen was supported by the stent.

The space created by the intraabdominal stent was quite similar to CO₂ pneumoperitoneum in the pressure of 15 mmHg (Figure 5A). Because the space was created by a semi-rigid mechanic structure, there would be no issues of air-leaks when we extended the incision. The condition was shown in Figure 5B. The space could be maintained by the structure without collapse. The comparison between the intraabdominal stent and the size of the abdomen was shown in Figure 5C. The stent size was slightly larger than the size of the abdomen.

Figure 5 The subsequent operative procedure is basically the same in conventional laparoscopy. (A) If the incision had to be extended, surgeons could simply extend the incision without collapse of operative space because there was no consideration of air leak as in CO₂ pneumoperitoneum; (B) the comparison of the expanded size and the body size of the tested pig; (C) the stent was successfully removed.

The abdominal wall was intact during the 1-hour course of the simulation procedures. There was no acute injury in the abdominal wall, visceral organs, and the tip-anchored sites. In the tip-anchored sites, there was only mild ecchymosis without penetration of migration of the tip. During the whole course of the test, there was no acute complication.

Discussion

Along with development of laparoscopic surgery, CO₂ pneumoperitoneum had become a standard method to create the operative space. However, CO₂ pneumoperitoneum may result in some adverse reactions or complications, especially in some extensive and complex procedures and in the elderly population (2,5-7). Inflation of CO₂ in the peritoneal cavity may cause compression of the venous system resulting in deep venous thrombosis and potentially lethal pulmonary embolism (8). During extensive dissection of the visceral organs, elevated air pressure may leak into the systemic circulation and contribute to the occurrence of air embolism (9). Cardiac tamponade and cardiac dysrhythmia are not uncommon in laparoscopic surgery (10-12). Cardiac contractility may be temporarily impaired by the compression of the intraabdominal air. Because CO₂ is easier for absorption and it has inert chemical property, CO₂ is a good choice than any other gas. But during prolonged procedure, absorption of CO₂ can lead to acid-base imbalance as well as electrolyte imbalance, especially in the elderly population. Complete recovery may require protracted time in some conditions (1,13). Timely correction by increasing ventilator rate is mandatory during anesthesia to prevent complications (14-16). Tissue hypoperfusion resulting from CO₂ pneumoperitoneum during laparoscopic surgery may aggravate the acid-base imbalance. Urine output can be decreased and the renal cortex perfusion may decrease to the extent of 60% soon after laparoscopic surgery, even in the pressure of less than 12 mmHg (17,18). The effects of laparoscopic surgery on the cerebral perfusion and oxygenation seemed to be controversial (19,20). Some studies indicated that there would be decrease in perioperative cerebral oxygenation while other studies showed that the difference is not significant (21,22).

The choice of inflated gas includes CO₂, nitrous oxide, Helium and Argon. CO₂ is the most favorable choice because its high solubility in the blood. However, CO₂ is the only one choice that may irritate the peritoneum (23).

Since CO₂ pneumoperitoneum has some disadvantages, some surgeons had tried to take use of gasless laparoscopic surgery in the hope to replace the role of conventional CO₂ pneumoperitoneum (24,25). Soon after initial attempts, the issues became a debate (26). Gasless laparoscopy did not replace conventional laparoscopy using CO₂ pneumoperitoneum. A major concern is that the operative space is narrow in gasless approach because the front abdominal wall was lifted upwards. The operative field is limited by this method. Therefore, most surgeons still use CO₂ pneumoperitoneum during their routine operations. In order to improve the gasless approach, some researchers proposed different device concept (27-29).

The comparison of gaseous and gasless laparoscopic surgery is very limited. The only randomized trial was performed by the group of Goldberg et al. (30). In their study, it showed that gasless laparoscopy did improve ventilator function and can lower ventilator peak pressure during operation. In contrast to the advantages of pulmonary function, surgeon encountered more difficulty in performing surgery. In terms of wound pain and patient’s recovery, the difference is not significant. They also conclude that the device is limited and its function can’t fulfill the surgeon’s need.

Currently, the only product we can see in the market is Laparolift (Origin Medsystems, Menlo Park, CA, USA). With the device, the operative space can be created by lifting front abdominal wall by a metal plate connected with a device that can be anchored on the operative table. The maximal lifting force is around 13 kg, which is comparable to 15 mmHg CO₂ pneumoperitoneum in creation of the operative space (31). The space, however, is an inverted V shape by lifting method, which is narrower. Some studies reported technical difficulty because the space is quite limited. In the study, 21.4% procedures had to be converted to CO₂ pneumoperitoneum simply because the operative space was limited (30). In a clinical study performed by Johnson et al., 40% procedures had to be converted to CO₂ pneumoperitoneum because the poor visibility during gasless laparoscopy (32). The result of these studies may demonstrate a fact that without suitable device, gasless laparoscopic surgery can not be a routine practice.

Recently, some studies showed that CO₂ pneumoperitoneum may increase the possibility of peritoneal seeding of malignant cells and enhance tumor growth as well as local recurrence. The effects are minimized by gasless approach (33). Although it is a study of animal model, the results should be concerned.

In the setting of CO₂ pneumoperitoneum, it can create a doom shape, which is better for both instrumentation and field-of-view. In contrast to the condition of currently available device, the lifting method can only create an inverted V shape. The issue of created space might be the key problem in current device. Inflation of gas into a closed space, such as the peritoneal cavity, can exert the force of expansion in all directions (Figure 6A). The volume of space may be related to the pressure. Pan-directional expanding force can generate a good operative space as in our routine laparoscopic surgery. When we tried to use the lifting device, the only reliable force is the lifting site. The resulting space is shown in Figure 6B, which is limited. When the target tissue or lesion is far from the lifting site, its surrounding space would be very small. If the procedure is complex and requires space, the likelihood of conversion to CO₂ pneumoperitoneum increases. In order to overcome the problem of narrow space, we designed the device using the mechanism of stenting. The anchored site is marked as “*” in red in Figure 6C. Using multiple anchor sites to stabilize the device, it can generate the expanding force in multiple directions and resembled the structure of a tent with a dome (Figure 6C).

Figure 6 The differences of the three methods for laparoscopic surgery. In CO₂ pneumoperitoneum, the expanding force is pan-directional and pushing all tissues in the abdomen. Because the operative position is usually in supine position, the front abdominal wall can be elevated and the operative space can be established. (A) In lifting device, there is only a strong pull force to elevate the front abdominal wall. The elevated force is mainly in the umbilical incision. Operative space is very limited in the peripheral locations; (B) in our stenting method, the anchor sites are marked as “*”. The expanding force was mainly acted in the front abdominal wall without affecting the intraabdominal organs; (C) the method can provide better operative space and can minimize any air pressure impact on the circulation and on the visceral organs.

When the anchor sites are fixed adequately, the maximal supportive force of the structure is around 10 kg. The supportive force is less than the force exerted by the lifting device but the created space is far greater than that exerted by lifting device. Smaller force may result in minor pain and trauma in the abdominal wall.

The device has the advantages of larger operative space compared to that generated by the lifting device with even smaller supportive force. Only mild ecchymosis in the anchor sites in the abdominal wall can be seen in the proposed method. In the condition of CO₂ pneumoperitoneum, we have to convert to open laparotomy if we need a large incision in complex procedures. The condition would be quite different in stenting method. Because extending incision will not cause air leaks, the stenting device can be still supportive and the working space will not collapse. If more trocar sites have to be created, surgeons can use nearly any site of the abdomen. The interference with the stent device is only minimal. Using large and conventional instrument, such as large and long needle holder or grasper, is much easier than the lifting methods. For gasless laparoscopy, stenting device may be a feasible alternative to lifting device.

There are some limitations of potential problems in the device. First, the size of the device should be adjusted according to the body size. The size selection is not a problem in the circumstances of using CO₂ pneumoperitoneum and lifting device. We can only have a rough estimate of the size before operation and this should be based on experience in further clinical trial. Second, we generally have to use an endoscopy to ensure the security of its placement because there might be adhesion or any other pathologic state that may hinder placement of the device. Third, the complexity of the structure of the stenting device is related to the stability of the created space. In the study, we used a structure involving six segments. The supporting function is adequate. The comparison of the main three methods is listed in Table 1.

In the preliminary animal study, the feasibility and plausibility can be confirmed. However, clinical study has to be carried out to test for its safety and efficacy in both patients and surgeons.
