A bedside feasibility study with optical coherence tomography for real-time tumor-located of lung cancer

Introduction

Lung cancer is the first leading cause of cancer-related mortality in the United States, with over 220 thousand new cases diagnosed and over 140 thousand deaths projected in 2019 (1). The earlier diagnosis of the disease will result in a higher possibility of the cure. Surgery is thought to be the best treatment option for early lung cancers (2). with the advance of diagnostic image tools, more early and small tumors can be found during a regular health check. Therefore, the role of instant intraoperative diagnosis is more and more important. However, microscopic resection-ensured and margin-free identification of these early and small tumors becomes a relatively tough issue because the procedure mainly depends on integrated information from preoperative imaging study plus direct visualization and palpation. Pathological techniques to examine the margins intraoperatively, such as frozen section analysis (FSA) (3) and imprint cytology, have been widely used to reduce the conditions of positive margins. However, all these methods have certain drawbacks, such as time-consuming or human resource-required process (4), and sometimes even false adequate resection, due to surgical sampling errors. All these unwanted limitations may induce beyond tumor resection, microscopic residual tumors and increased risks of local tumor recurrence (5).

Optical coherence tomography (OCT) was photometric technology ever developed for harmless cross-sectional imaging of biological systems (6). OCT is non-contact, non-invasive, and non-radiative, providing real-time micrometer imaging without the need for special preparation. It was first introduced in 1991 by Huang et al. (7). This imaging technique base on the principle of low coherence interferometry, and the contrast mechanism of OCT relies on the variations of refractive index and the light scattering properties associated with different tissue structures. By detection and transformation of the data from the backscattering light beam over the tissue, two-dimensional images or three-dimensional volumetric images can be recorded and analyzed. The utility of this imaging modality was previously demonstrated in ophthalmology (8) and cardiology (9). This kind of optical imaging method offers near histologic resolution for visualizing tissue structures on and below the surface down to the scope of 2–3 mm (10). The resolution lies in the range of 1–20 µm in the axial and transverse direction, depending on the modality used. Although OCT has been used as an optical biopsy tool in certain cancerous areas, such as skin (11) and breast (12), there are limited reports with OCT used in nude specimens of the lung, either malignant or benign. In this study, we tried to explore the potential of OCT and differentiate the fresh lung specimen, especially invasive adenocarcinoma (IA), intraoperatively. The goal was to determine its feasibility of application in clinical practice.

Methods

System set-up

The schematic diagram of the spectral domain OCT (SD-OCT), a single-mode fiber-based unbalanced Michelson interferometer, is shown in Figure 1. Light was first emitted from a broadband super luminescent diode (SLD), operating at 840 nm central wavelength with spectral width (FWHM) 51.2 nm, and 10 mW max output power. (cBLMD-S-371-HP2-SM-OI, Superlum BroadLighters) The axial resolution was 6.06 µm in air. One fiber coupler was assembled. The light from the source entered the coupler with a splitting ratio of 50:50. In the sample arm, the power of probe beams on the platform was 3 mW. For a 3.99 mm beam diameter incident on an achromatic lens, the transversal resolution of the spot on the sample was 10 µm. To facilitate image acquisition, a set of two galvo-scanners (G_X, G_Y) were installed in the sample arm. (GVS001 and GVS002, THORLABS) With a variable neutral density filter (ND-filter) on the reference path, the power was optimized to maximize the sensitivity of the system. The measured sensitivity was 90 dB. The backscattered probe beam and reflected reference beam were recombined by the coupler and then introduced into the high-speed spectrometer (Cobra-800-880, Wasatch Photonics), composed of a transmission grating and a charge-coupled device (CCD) line scan camera. The line scan camera had 4,096 pixels and could be driven a line rate of up to 40 kHz. The data was transferred to a personal computer (PC) via Camera Link connection. The cart visible picture is shown in Figure 2.

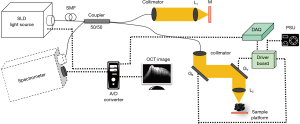

Figure 1 Schematic diagram of the SD-OCT. SMF, single mode fiber; L₁,L₂, achromat lens; M₁, mirror; G_X,G_Y, galvo-scanners; DAQ, data acquisition (NI-6343, National Instruments); PSU, power supply.

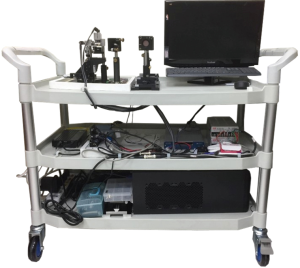

Figure 2 Visible cart picture.

In our practical scanning, the speed was 20k axial scans per second at 2048 pixels. The G_X was driven for 2,000 lines, requires 0.1 s. With G_Y driven at 0.025 Hz, 400 cross section OCT images were reconstructed at different lateral positions, requires 40 seconds per volume. The volumetric imaging was performed in an area of 2.5 mm × 2.5 mm, with a limited depth of 2.3 mm.

Image acquisition

Patients being preoperative diagnosis as lung cancer were enrolled in the study. This study was approved by Institutional Review Board for the Protection of Human Subjects of the MacKay Memorial Hospital (18MMHIS084). The trail is not performed in-vivo. Those who have signed the Hospital (Clinic) Surgery Consent Form and sent the specimen to the clinical laboratory shall be deemed to have consented. OCT scanning procedures were conducted intraoperatively. Before operations, the OCT system was shifted the operating room and did fast calibration and optimization of hardware. The surgeon then removed the suspected lesions according to CT images and gross examination. The clinician straightaway gave us fresh specimens after resection. We performed OCT real-time scanning before the frozen section and then data acquisition.

After OCT imaging, specimens were processed and sectioned as the usual standard histology procedures, stained check with hematoxylin-eosin (H&E). The two kinds of images, OCT-acquired and traditional histological-processed, were analyzed as the endpoints of this study.

Signal processing

SD-OCT requires the spectral interferometric fringe to be evenly sampled in terms of wavenumber k to reconstruct the axial profile of the tissue. In general, the detected interferometric spectra are resampled (13). A schematic diagram of the processing method is shown in Figure 3. After fast Fourier transform (FFT) and window cropping, sequential A-scan would assemble a preliminary image. However, there still existed some artifacts; for this, we introduced a new algorithm to remove them. Finally, we combined sequential B-scan to a volume set, which could be slice arbitrary in the sagittal section, coronal section, or even horizontal section, usually called en-face. To assist with a large number of data and images, LabVIEW 2019 and ImageJ software was used to facilitate slice stacking, transformation, and 3D volume reconstruction.

Figure 3 Signal processing procedure.

Scientific implementation algorithm

We presented an algorithm to remove artifacts from preliminary OCT images. Figure 4 exemplifies one image processing this algorithm. First, we definite some variables and parameters. I[m×n] and I*[m×n] describe the intensity, size M×N, before and after optimization. m ∈{1,…,M} and n ∈{1,…,N}. M and N are row length and column length of one B-scan. G[m], a binary 1D array of A-scan. X[m×n], a binary 2D array of B-scan. S[n], 1D coordinate composed of each A-scan. The bold emphasis denotes that the function is discrete. A detailed description of each step of the algorithm follows.

Figure 4 Algorithm interpretation of image optimization. Yellow arrow: strong straight artifact. Blue arrows: residual artifacts. Red arrow: processing direction. Red curve: surface profile.

Step 1: straight artifacts removal

In general, straight artifacts would exist due to hardware instability and extremely strong reflectivity of tissue top surface, decreasing image quality and missing useful information. Straight artifacts were determined independently for each A-scan. We computed two parameters: n_th, two standard error above mean background value, and l_th, threshold value that judging whether this A-scan existed straight artifact or not. For the value less than n_th, return to zero and assign G[m]=0; while for the value over n_th, remain and assign G[m]=1. After that, summed up the G[m] and check whether this A-scan would be classified in a straight artifact or not. If it’s true, replace the current A scan with the previous A-scan. Note that the choice of threshold technique may be sample dependent: for example, the presence of fur reflective water surface may necessitate a more complicated surface extraction method.

Step 2: surface profile detection and a mask creation

Unfortunately, there remained some residual artifacts above the surface probably the autocorrelation terms close to DC signals. At this step, we tried to consider a more comprehensive algorithm for surface profile extraction, S[n] and then create a mask for the image, X[m×n]. Providing that the index was above the surface, X[m×n]=0; while the index was below the surface, X[m×n]=1. Firstly, we found the mean of the highest five sequential indexes as the surface coordinate. Secondly, to avoid abrupt isolated coordinated, which did not account for the surface, the profile was monitored and smoothed by repeated iteration: replacement and averaging. For simplicity, the recursion was applied and finally, the surface coordinate would be improved and convergent to an optimized one.

Step 3: multiplication preliminary OCT image and the mask

We multiplied this searching mask and intensity, extracted from step 1. That’s the final optimized image.

Results

A total of 6 ex vivo lung specimens, presumably IA, from 3 patients over 50 years old were enrolled in this study. Figure 5A showed one the visible picture of a tumor margin right after the excision. Figure 5B demonstrated our two-dimensional (2D) scanning direction, x and three-dimensional (3D) scanning direction, y. A cross section OCT image was sliced orthogonally to the specimen surface, and 400 cross section images were reconstructed into a complete volume set. To match OCT results, the specimens were sliced at 90 degrees to lesion surface retaining orientation by histologists. OCT sagittal section images of the normal and the cancerous are shown in Figures 6 and 7, including their corresponding H&E stain images. Via comparing these two kinds of OCT images, the results depicted inhomogeneous to the cancerous side below the surface, while it’s homogeneous to the other side.

Figure 5 Ex vivo specimen for OCT intraoperative scanning. (A) Visible picture of specimen. N, normal site; C, cancerous site. Yellow boxes: OCT-scanned area, scale bar: 2 mm and (B) scanning direction demonstration.

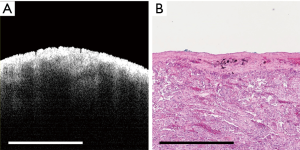

Figure 6 Cross section of the normal region (A) OCT image and (B) H&E stain image, scale bar: 1 mm.

Figure 7 Cross section of the cancerous region (A) OCT image and (B) H&E stain image, scale bar: 1 mm.

Image interpretation of H&E-stained vs. OCT-scanned for normal lung tissue

As the attenuation of near-infrared (NIR) light in biological specimens is governed by Beer-Lambert Law, the attenuation situation is similar at each position owing to well-organized tissue structures. Therefore, the normal region showed homogeneous signal attenuation along with depth. In other words, uniform density tissues would share identical attenuated situation.

Image interpretation of H&E-stained vs. OCT-scanned for adenocarcinoma of the lung

The tumor features of the cross section, defined as intensity clefs or dark stripes, can be observed owing to irregular scattering. As going in-depth, repetitive inhomogeneous features different from the surrounding region represent an abnormal reduction of signal strengths.

The OCT-imaged features of necrosis can be identified by lesions that change in texture, contour, and structure. On the other hand, the H&E stained image showed accumulated and concentrated cellularity with hyper-chromosome and disappearance of alveolar air space.

En-face image extraction

To further allow comparison with OCT and histology, we assembled en-face images, the same displayed direction as general histology. The results of en-face images showed in Figure 8. These OCT images were taken at different depths, measured from the top of the sample in air. From the en-face images, we speculated that noticeable patterns of uneven dark stretches indicated the presence of the tumor.

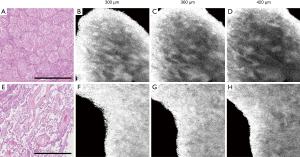

Figure 8 (A,B,C,D) En-face of the cancerous region and (E,F,G,H) en-face of the normal region. (A) and (E) are H&E stain image. 300 µm, 360 µm, and 420 µm represent their depth from the top of the specimen, scale bar: 1 mm.

From Figures 6-8, we inferred that the OCT images are capable of differentiating malignancy and normal from fresh specimens. The normal lung tissue, ordinary cell division, and similar scattering light attenuation were visualized. In contrast, the cancerous region was recognized as heterogeneity due to abnormal hyperplasia.

Discussion

Lung cancer is globally the most common cause of cancer deaths. During the last decades, many kinds of advanced diagnostic imaging tools, such as ultrasound (US), computed tomography (CT), and magnetic resonance imaging (MRI), were built to identify the patient with abnormal lung lesions. However, there remain some disadvantages, for example, low spatial resolution, exposure to ionizing radiation, and high equipment costs. Especially, US examination, which signal disappears due to inappropriate air media in the lung. Also, the number of precancerous early lesions, atypical adenomatous hyperplasia (AAH), and early-stage lung cancer, carcinoma in situ (CIS), is rapidly increased during these years. That means that smart inspection, accurate diagnosis, and adequate treatment play a more important role in the clinical workflow for patients (14). Moreover, pathologic analysis of partial or surrogate tissue from the main tumor target intraoperatively becomes crucial for establishing the near accurate diagnosis and planning subsequent surgical procedures. Except in well facilitated medical center, time-consuming and tissue transportation between operating and laboratory sites are still existent issues clinically. Thus, getting instantly accurate differentiation and on-site diagnosis intraoperatively is imperative.

OCT is an interferometric modality that provides noninvasive tomography of tissues. The first generation of OCT, known as time-domain OCT (TD-OCT), had slow imaging speed, about several hundreds of depth lines per second (15). A recent OCT method, Fourier-domain OCT (FD-OCT) provides faster speed of around several hundred-thousand A-lines per second (16). FD-OCT detects the interference signal in the spectral domain. This spectral domain detection is typically achieved by a high-speed spectrometer or by a wavelength sweeping laser. FD-OCT based on the former scheme is called spectral domain OCT (SD-OCT), and that based on the latter scheme is swept-source OCT (SS-OCT). These two kinds of FD-OCT have their specific advantages and functions. Owing to SD-OCT’s simple schematic diagram and fewer variables, we chose SD-OCT on clinical trials. Furthermore, it’s convenient to build the cart system.

In this study, we investigated the feasibility of SD-OCT in the real-time evaluation of lung tumors in fresh, unprocessed, and unstained, ex vivo human specimens. We have demonstrated OCT-based technology had the potential to be a pathology assistant. As images from the cross section were inadequate, we further piled up the entire image stack and extracted the transect, en-face images, arbitrarily along with depth. According to our results, OCT-captured images of normal tissues showed homogeneous features. In other words, similar light attenuation through lung tissue. In contrast, those of cancerous tissues showed heterogeneity and irregular arrangement. According to the current histologic images, we favored that the reason was abundant tumor cells fill the alveolar space.

Indeed, the lung is a unique organ as it contains lots of blood and air. In the optical window, refers to the wavelength range where the penetration depth of light reaches the maximum in biological tissues, generally in the NIR wavelength range. Within the NIR window, scattering is the most dominant light-tissue interaction. Since scattering increases the distance traveled by photons within the tissue, the probability of photon absorption also increases. The advantage of OCT is that it receives the backscattered light signal. It is worth noting that blood and water absorption have their local minimum in the NIR window. Namely, using NIR as an OCT light source has a relatively smaller effect comparing with other wavelengths. On the other hand, the clinician would use the lung collapse method to turn the hollow organ into a concentrated nearly solid organ, so the specimen may not contain air. Under our OCT measurement, we put the specimen on the suitable objective focal length, 30mm. It would not be disturbed by air. In our current OCT system, lung sample penetration is about 1.5 to 2 mm.

Additionally, after basic signal processing, calibration of k linearity (17), FFT, etc. We found that it was significant to do optimization, owing to hardware instability and sample surface moisture, total reflection, artifact, and speckle effect. Hence, we designed a simple algorithm to tweak images and successfully train proper thresholds and parameters. Besides, for any high-resolution imaging setup, there is always an effort to strike a balance between resolution and imaging depth. That is to say, for a high numerical aperture (NA) of the lens would sacrifice depth information. This is non-trivial in OCT since only matched magnification is possible to juxtapose histology microscopes.

This study showed that there was a strong relationship between the surface curve and the power of probe beams hit on the tissue surface. In other words, if the surface curve was located close to the focal plane, with flat and smooth, the power on the sample will be stronger than the surface point away from the focal plane. It was obvious that even if the gap is only one millimeter. For the high-low gap and breach rich sample, it was a more different challenge without flattening the sample. Several studies have shown that using OCT to quantify the local attenuation coefficient was more informative to the pure backscattering intensity. Yet there were insufficient correct attenuation coefficients in some mediums, especially soft tissues. We have tried some compensated method to regulate the intensity and assess the attenuation coefficient, but the difference between normal and cancerous regions is unsatisfactory.

The clinical studies using OCT for images of the lung are finite. Besides, to differentiate malignant and normal tissues, we expect that OCT can stratify subtypes of malignant lung tumors, even benign inflammation. Furthermore, owing to the lack of clinical human trials, especially the multi-institution corporation, it is still unable to definitively show the true clinical value of OCT in oncology. To the best of our knowledge, interdisciplinary clinical trial validation could greatly promote the value of the translation of OCT techniques. Since creating a forum where different perspectives can be expressed, good ideas can be put forward, and finally, consensus can be obtained. Moreover, establish the standard operating procedures of OCT methods can build up the atlas of OCT-based oncological imaging. Last but not least, we expect that future learning ability of OCT-captured images can be carried out to avoid time-consuming and human-resource required situations and able to improve current diagnostic efficiency.

Conclusions

In summary, this trial was only a pilot study aimed to correlate the histological features of lung cancer and instant OCT-captured images. Based on experiments to characterize malignant histology employing on our novel SD-OCT system, we implemented a besides study. Depending on appropriate signal processing methods, the result warranted a qualitative analysis of normal and cancerous regions from OCT images in the future. We expect that the tumor-margin can be demarcated on-site with the OCT technique, instantly, informatively, and efficiently.
